I/O
type & Signal type
I/O types are used to define I/O variables in the typical. It is free to make all different I/O types. It is not necessary to make different I/O types for different logic manufactures (S7, AB, ABB etc). I/O Types like AI [Analog Input] or DI [Digital input] have the same meaning for different manufactures.
It is also possible to create and use I/O signal types. These can be created in this view. Examples for I/O signal types are '4-20 mA' or '0-10 Vdc'. I/O signal types can be added to every I/O type and can later be used on modules and channels to assign the correct I/O. When adding an I/O signal type to an I/O type, that I/O Signal type can be used with that I/O Type. If an I/O signal type is not added to an I/O type the Signal type can not be used with that specific I/O Type.
In the I/O type view the I/O types and I/O signal types are made.
In the products view these I/O types and I/O signal types can then be selected on I/O modules. There are two fields in the products view. The first one, called 'IO signal type', sets the default I/O signal type on a root product and the selected I/O signal type on subproducts or in a project. The second field, called 'Allowed IO signal types', sets the allowed I/O signal types on a root product and is read-only on a subproduct and in a project.
In the I/O unit view these I/O types and I/O signal types can be selected when creating I/O channels.
type.png)
Also see:
Click .
Enter a name for the new I/O type.
Optionally enter a description
If you do not want an I/O type to be used in other library and project views, it can be disabled by unchecking the ‘enabled’ checkbox.
Click .
Enter a name for the new I/O signal type.
Optionally enter a description
Select the I/O type to delete.
Click .
Click in the message dialog.
Please note that an I/O type in use (status locked) cannot be deleted.
Select the I/O signal type to delete.
Click .
Click in the message dialog.
Instead of creating a new I/O type from scratch, an existing I/O type can also be copied.
Select the I/O type to be copied.
Click .
Enter a new, unique name for the copy.
Optionally change the I/O type’s description and enable or disable it.
Instead of creating a new I/O signal type from scratch, an existing I/O signal type can also be copied.
Select the I/O signal type to be copied.
Click .
Enter a new, unique name for the copy.
Optionally change the I/O signal type’s description.
To use I/O signal types, they must first be assigned to I/O types. .
Drag one or multiple I/O signal types on an I/O type
The I/O signal types on the I/O type can now be viewed by opening the tree
Right-click on the I/O signal types that need to be unassigned on the detail grid in the left view.
Click .
Click in the message dialog.
In this chapter the working of I/O (signal) types in products is explained
Note:
I/O (Signal) types can be chosen on an I/O module that is linked to a product. See add items to a product
Each I/O Module in a product has a function, an I/O Module can be added multiple times, as long as the function is unique.
Further an I/O module can have
One I/O type;
Multiple alowed signal type`s;
One selected I/O signal type, this will be the (default) I/O type used in project.
Example for use
In the I/O type & I/O signal types view both type & I/O signal types are created and asigned.

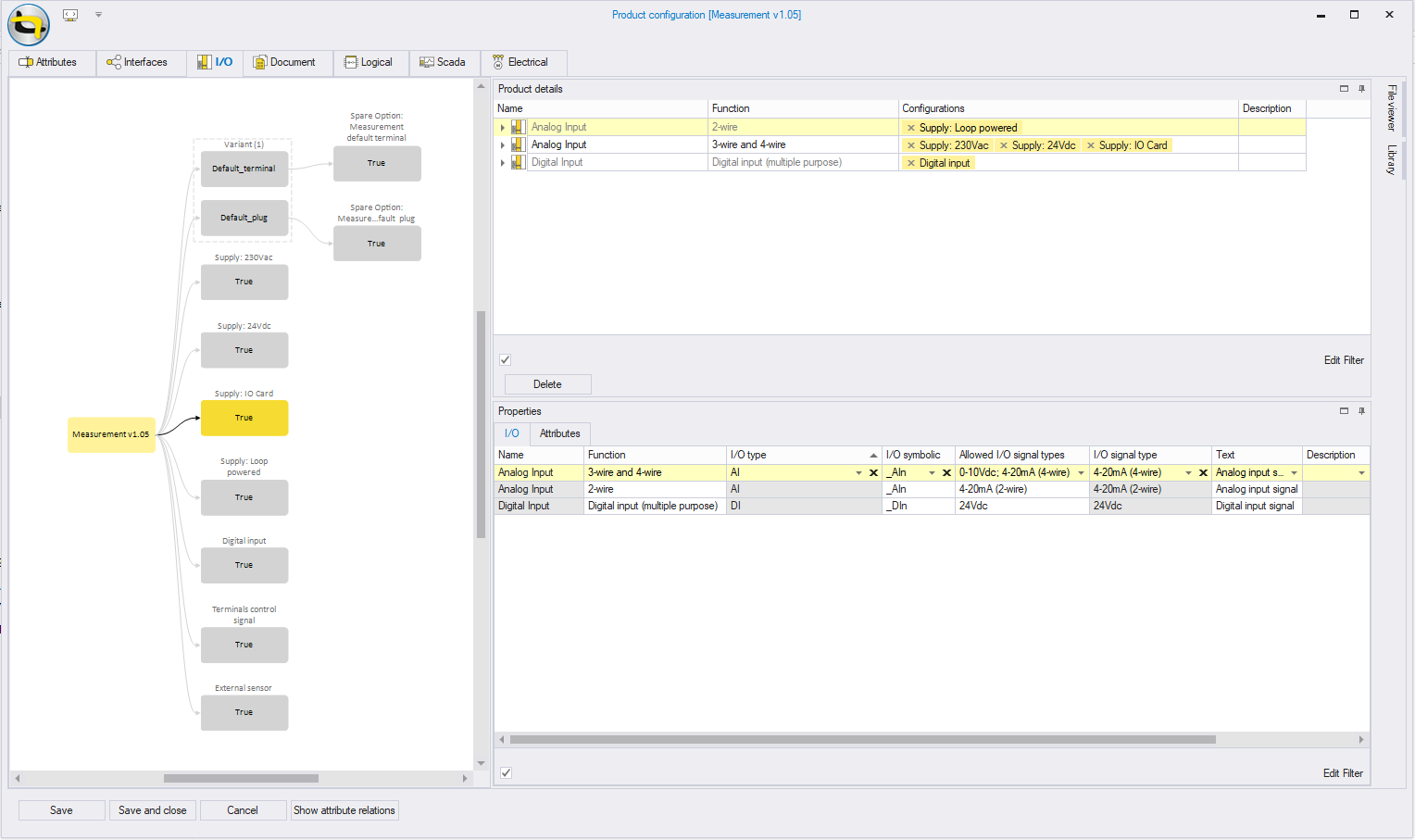

When an I/O module is assigned to a product, multiple 'Allowed signal types' can be chosen. These are the signal types that where added to the I/O type before.
type_on_product.png)
After selecting some Alowed I/O signal
types an 'Default' I/O Signal type can be selected. (this is optionally)
and can also be dona when the product is placed in project.
